Advanced Electrical Test Board Solutions

We provide manufacturing services in Wiring Harness like.. Electrical Test Boards on Advanced Testers, Engine Wiring Harness, Dashboard Wiring Harness, Tailgate Wiring Harness, Bumper Wiring Harness, Alternator Harness, Headlamp Assembly, Pigtail Assembly, Battery Cables and Plastic Molds for Small Components, Wiring Harness comp, EPDM, Rubber Mold, Relay/ Fuse box covers, Proto parts, 3D printing etc.

A Conveyor Assembly Line for EV Wiring Harness is a production system designed to streamline the assembly, testing, and quality control of wiring harnesses specifically tailored for electric vehicles (EVs).

Core Components of the Conveyor Assembly Line

Conveyor System: Belt, chain, or roller conveyors depending on load and layout. It can be straight-line, U-shape, or circular depending on space and production flow and may be Manual, semi-automated, or fully automated systems.
Workstations: Each station handles a specific task (cutting, crimping, inserting connectors, taping, labeling, etc.). Ergonomic design for operator comfort. Equipped with tools like wire strippers, crimpers, soldering units, scanners, and barcode printers.

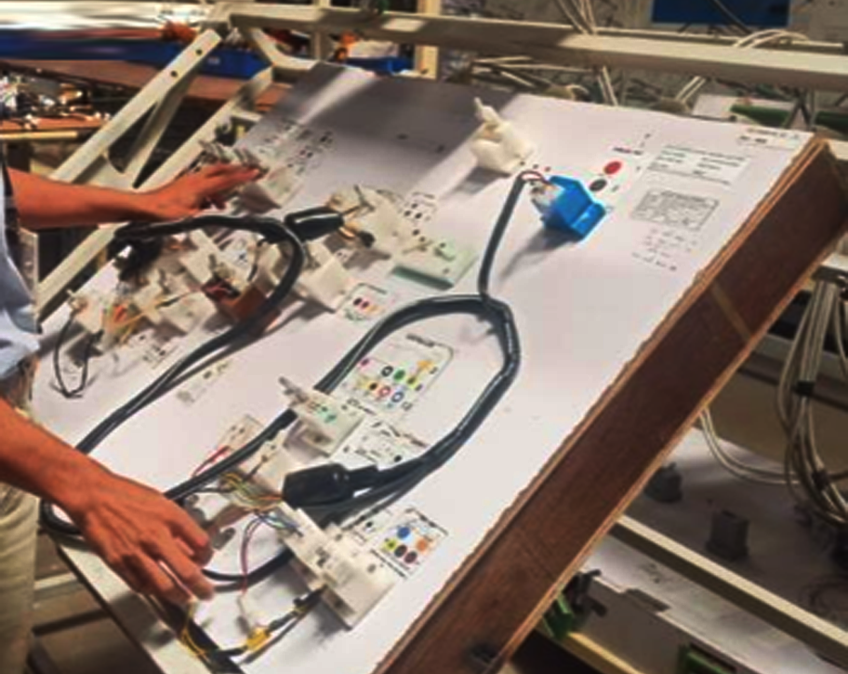

Tooling and Fixtures: Custom harness boards (also called nail boards) for routing and assembling wires. Jigs and clamps to hold components in place. Changeable fixtures for different harness types or vehicle models.
Electrical Testing Stations: Continuity testing , High-voltage insulation testing (for HV harnesses), Functionality testing of embedded components (sensors, connectors, etc.).
Data and Traceability Systems: Barcode/RFID tagging at each station for real-time tracking. Data logging systems for QC records and production analytics.
Quality Control & Inspection: Visual inspection zones, Automated camera systems or scanners for connector verification, Torque and pressure monitoring for crimping operations.
Packing & Dispatch Area: Final packaging based on model/build sequence. Protective packaging for high-voltage components.

Process Flow of Conveyor Assembly Line for EV Wiring Harness

Process flow of a conveyor assembly line for an EV (Electric Vehicle) wiring harness. This type of assembly line ensures efficient, consistent production of the wiring systems that are crucial to EV operation.

Main advantages:

Material Preparation: Components like Wires, connectors, terminals, fuses, clips, tapes, etc. are used in the process. Incoming parts are quality-checked and sorted. Automated machines cut wires to required lengths and the Wire ends are stripped and twisted as per design.
Pre-Assembly: Labeling & Marking is used in Preassembly. Wires are color-coded or labeled for easy identification. Terminals are crimped onto wire ends using automated crimping tools. Crimped wires are inserted into connectors as per wiring diagram.
Harness Layout Setup: Harness boards (Fixture Boards (Jigs) are arranged along the conveyor to guide the layout. Wires are routed and laid out on the boards as per the harness design. Wires are bundled together using tapes or sleeves for organized routing.
Inline Quality Inspection: Continuity Testing helps Electrical tests to ensure that the wires are correctly connected. Visual Inspection is done to check for damage, misplacement, or incorrect crimping.
Final Assembly: Installation of Clips & Holders are used for securing harness inside the vehicle. Protection Application like Heat shrink tubes, convoluted tubes, or insulation sleeves are added. Labeling & Tagging are done for final identification tags or barcodes are attached.
Final Testing: Functional Test is done to simulate actual power flow and signal transmission. Waterproof/Seal Test are done especially for connectors exposed to external environments.

Special Considerations for EV Harnesses

High Voltage (HV) Cable Handling: Requires special insulation, handling equipment, and HV test stations.
Shielded Cables & CAN Bus Lines: EMI shielding and integrity are critical.
Modular Harness Design: For flexible battery configurations or motor layouts.
Battery Management System (BMS) Integration: Precise connection points and sensors.

Optional Enhancements for EV Harnesses

Robotic Arms for Repetitive Tasks
Digital Twin for Line Simulation & Optimization
Andon Systems for Error Alerts
MES Integration (Manufacturing Execution System)

Application industries for Conveyor Assembly Line for EV Wiring Harness

A Conveyor Assembly Line for EV (Electric Vehicle) Wiring Harness has applications in several key industries that are focused on manufacturing, electrification, and mobility.

Application industries where such a system is commonly used:
