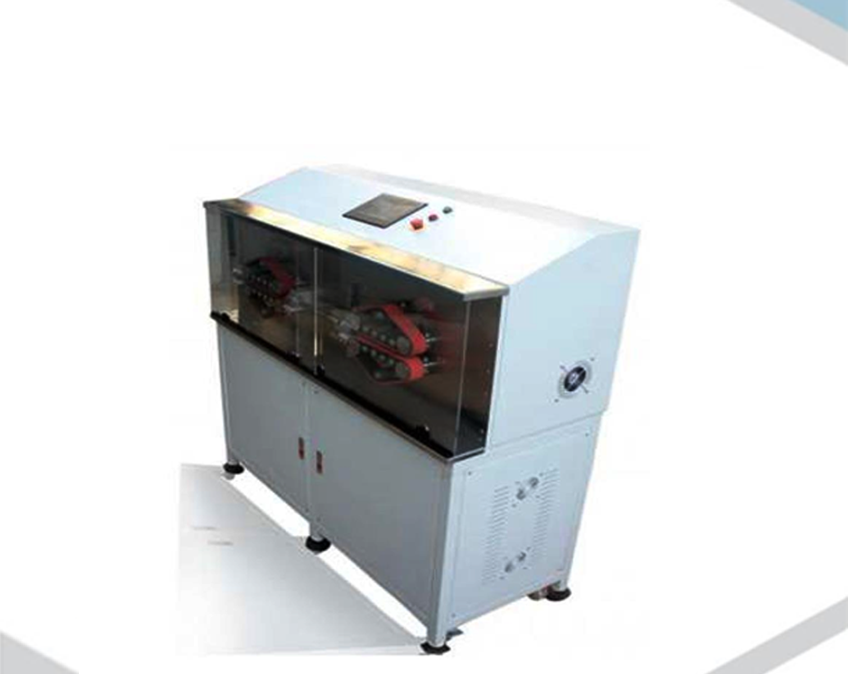

Battery Cable Cutting And Stripping Machines are specialized automation tools used in the production of wiring harnesses, particularly for heavy-duty applications like automotive, industrial machinery, aerospace, and energy systems where thick, high-current cables are involved. These machines are designed to efficiently process large-gauge cables (typically 2 AWG to 250 MCM or larger) (often 8 AWG to 4/0 AWG or larger) with precision and consistency and remove insulation without damaging the conductors inside.
Key Features of Battery Cable Cutting And Stripping Machines
- Cable Size Range: Ensure the machine supports your required cable diameters and insulation types (PVC, XLPE, rubber, etc.). Capable of working with stranded copper and aluminum conductors.
- Cutting Accuracy: Precision in length measurement is crucial for wiring harness assembly. Must handle thick cables (e.g., 10 mm² to 120 mm² or more). Precision blades to ensure clean cuts.
- Stripping Capabilities: Full and partial strip options, plus support for multi-layer insulation in Rotary or V-blade systems for accurate insulation removal.
- Programmable Settings: Store multiple programs for different cable types and lengths. Fully automatic (cut, strip, measure) or semi-automatic. Programmable length and strip settings.
- Interface: Touchscreen HMI or digital control panel with easy program setup and diagnostics. Job storage for repeat production.
- Pulling Force: Must be adequate for stiff, large-gauge battery cables.
- Blade Type: Carbide or hardened steel blades for durability.
- Safety Features: Enclosed cutting area with Emergency stop and interlocks.
Working of Battery Cable Cutting and Stripping Machines for Wiring Harness
Battery cable cutting and stripping machines are automated systems used in the manufacturing of wiring harnesses, particularly for automotive, industrial, and battery-powered systems. These machines are designed to handle thick and heavy-duty cables used in high-current applications like battery connections.
Working Principle of Battery Cable Cutting and Stripping Machines
Motorized rollers or belt drives pull the battery cable from a reel. The feeding system ensures precise length measurement before cutting. Some systems include encoder feedback to monitor and adjust feeding accuracy. An encoder or measuring wheel monitors how much cable has been fed. Lengths are programmed via a control panel (often touchscreen-based) or a PLC (Programmable Logic Controller). After feeding the desired length, the cable is cut using a pneumatic or servo-driven blade. Blades are typically made of hardened steel or tungsten carbide for durability. Some machines have a guillotine-style blade for clean cuts on thick cables. The machine holds both sides of the cut cable. Rotary or V-blade stripping heads move in to remove the insulation. Full stripping removes the insulation completely. Half stripping leaves the insulation partially attached for later manual removal. Stripping lengths are adjustable via software or control panel.
Special Features (Depending on Machine)
- Dual-end stripping: Both ends of the cable can be stripped automatically.
- Multiple wire sizes: Machines can adjust to various cable diameters.
- Crimping integration: Some machines also crimp terminals onto the stripped ends.
- Wire marking or labeling: For identification in complex harnesses.
- Heat shrink or sealing preparation: Prepares wire ends for heat shrink sleeves.
Key Components
| Component | Function |
|---|---|
| Feeding Unit | Pulls the cable to the correct length |
| Cutter Head/Blade | Cuts the cable precisely |
| Stripping Head | Removes insulation at cable ends |
| Encoder/Measuring Unit | Measures the fed length |
| Control System | Program and monitor all machine operations |
| Safety Enclosures | Protect operators during operation |
Applications of Battery Cable Cutting and Stripping Machines in Wiring Harness
A harness testing board (sometimes called a test bench or test fixture) is used to verify circuit continuity and the correct wiring of cable harnesses and wiring assemblies before they are installed in their final systems. This is critical because any wiring mistake can cause major failures later.
- Automotive Industry
- Industrial Equipment
- Aerospace and Defense
- Renewable Energy Systems
- Control Panels and Switchgear
