Reliable Military Grade Connectors Suppliers

We provide manufacturing services in Wiring Harness like.. Engine Wiring Harness, Dashboard Wiring Harness, Tailgate Wiring Harness, Bumper Wiring Harness, Alternator Harness, Headlamp Assembly, Pigtail Assembly, Battery Cables and Plastic Molds for Small Components, Wiring Harness comp, EPDM, Rubber Mold, Relay/ Fuse box covers, Proto parts, 3D printing etc.

Military-Grade Connectors In Wiring Harnesses guarantee safe, long-lasting connections in demanding settings such as industrial systems, aircraft, and defense. These connectors are resistant to moisture, vibration, and high temperatures. Military-grade connectors speed up installation, simplify complicated wiring, and increase dependability. MIL-DTL-38999 and other specifications are met by them for high-performance applications.

Working principle of Military Grade Connectors Wiring Harness

Military-grade connectors and wiring harnesses are designed to provide secure, reliable, and durable electrical connections in extreme conditions, such as high vibration, temperature extremes, moisture, dust, and electromagnetic interference (EMI).

The working principle of military-grade connectors and wiring harnesses is based on providing reliable, secure, and robust electrical interconnectivity that can withstand the harsh environments typical of defense applications. Through advanced design features like locking systems, EMI shielding, environmental sealing, and durable construction, they maintain performance and integrity where failure is not an option.

Core Working Principle :

Military-grade connectors in wiring harnesses function by transmitting electrical signals or power between devices or systems, ensuring signal integrity and minimal power loss and maintaining a secure physical and electrical connection under harsh conditions.

Connector Interface : Male (plug) and female (receptacle) connectors are mated to establish an electrical path, and contacts are usually gold, or nickel plated to resist corrosion and improve conductivity.

Secure Locking Mechanism includes bayonet, threaded, or push-pull locking systems to prevent accidental disconnection and ensures vibration resistance.

In Shielding and Insulation, EMI shielding (metal braids or foil) is used to block electromagnetic interference and Insulation materials like Teflon, PTFE, or silicone protect wires and maintain signal quality.

In Wiring Harness Integration, the Wires or cables are grouped, labeled, and bundled into a harness. This harness routes signals or power between different parts of a system (e.g., avionics, vehicle subsystems).

In Strain Relief & Sealing, the Strain relief components prevent cable damage due to pulling or flexing and the Sealing features (like O-rings or gaskets) ensure moisture, dust, and chemical resistance.

Advantages of Military Grade Connectors Wiring Harness

Reliable, durable, and resistant to extreme conditions, military grade connectors ensure secure power and signal transmission. They offer EMI shielding, easy maintenance, space-saving design, and comply with military standards for high-performance operations.

Main advantages:

High Reliability: Provide stable connections in critical missions and harsh environments.
Durability: Withstand extreme temperatures, moisture, corrosion, and physical stress.
Efficient Signal & Power Transmission: Maintain high-performance electrical continuity.
EMI/RFI Protection: Shielded designs protect against electromagnetic interference.
Time-Saving Installation: Pre-assembled harnesses speed up system integration.
Easy Maintenance & Replacement: Modular and standardized components allow quick servicing.
Compact & Organized Wiring: Reduce cable clutter and optimize space usage.
Compliance with Military Standards: Ensure performance consistency under MIL-spec regulations.
Customizability : Can be tailored to unique equipment and mission requirements.

Components of Military Grade Connectors Wiring Harness

Component	Description
Connector Shell	Outer casing provides mechanical strength and environmental protection.

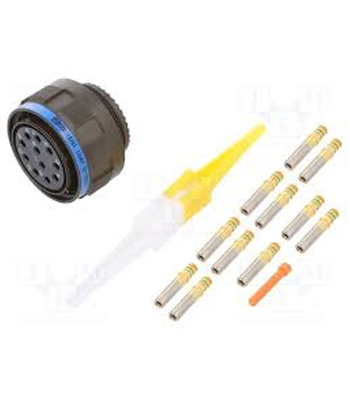

Contacts (Pins/Sockets)	Conductive elements that transmit electrical signals or power.
Insulator	Separates and supports the contacts within the connector.
Back shell	Secures the cable to the connector and provides strain relief.
Coupling Mechanism	Locking system to ensure a secure mating connection (e.g., bayonet, threaded).
Sealing Gasket/O-ring	Prevents ingress of moisture, dust, and contaminants.
Cable Assembly/Wires	Bundled wires that carry power or signal through the harness.
Shielding (EMI/RFI)	Protects against electromagnetic or radio frequency interference.
Over mould/Boot	Protective covering for added strain relief and insulation.
Labels/Markings	Identification tags for easy installation and maintenance.

Types of Military Grade Connectors Wiring Harness

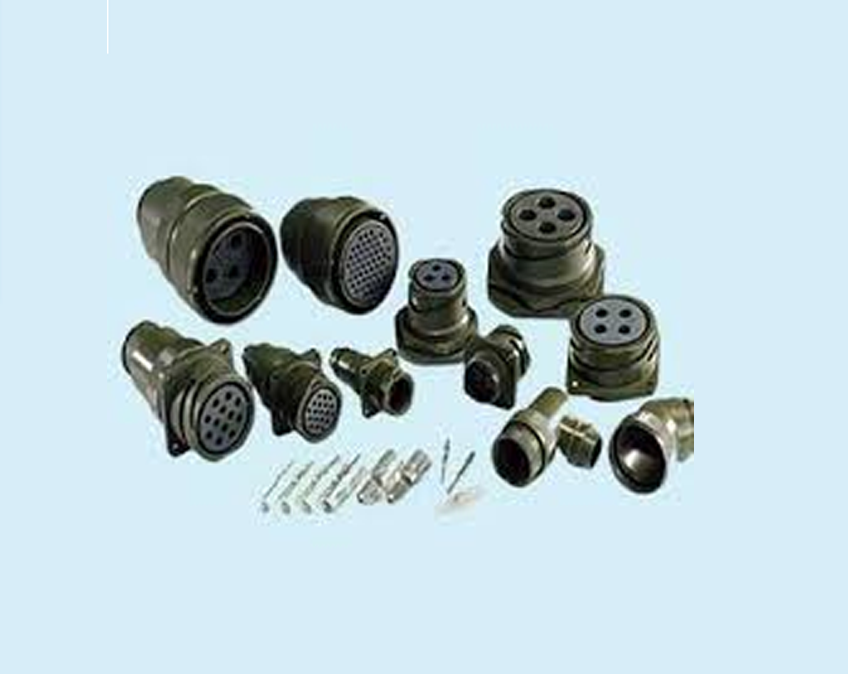

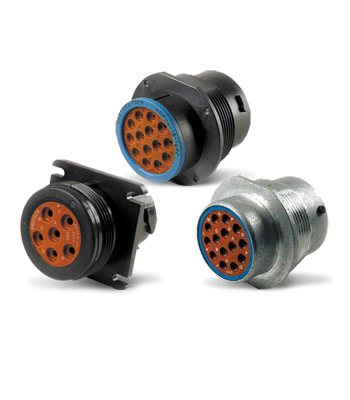

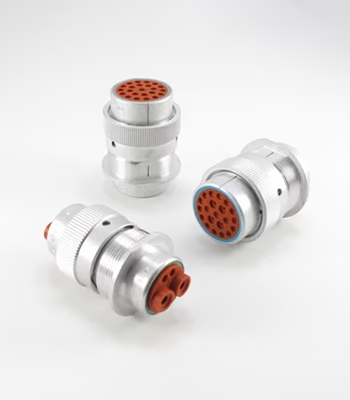

MIL-DTL-38999 Connectors: High-performance circular connectors designed for aerospace, defense, and high-vibration environments. Known for their durability and EMI protection.

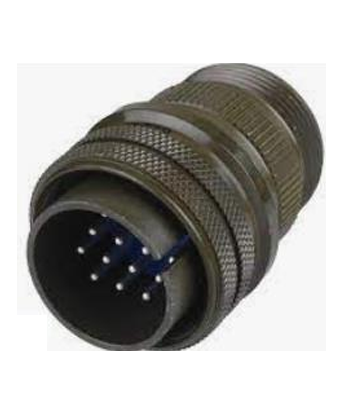

MIL-C-5015 Connectors: Rugged circular connectors widely used in ground vehicles and heavy equipment for power and signal transmission.
MIL-DTL-26482 Connectors: Compact, lightweight connectors used in applications requiring high contact density and fast mating.
MIL-DTL-83723 Connectors: A hybrid design combining features of MIL-DTL-38999 and MIL-C-5015, suitable for both aerospace and military ground systems.
RF Coaxial Connectors: Used to transmit radio frequency signals in communication systems, radar, and signal processing equipment.
Fiber Optic Connectors: Provide high-speed data transfer and immunity to EMI/RFI. Common in modern battlefield communication networks and avionics.

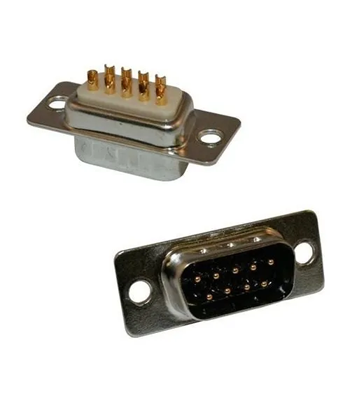

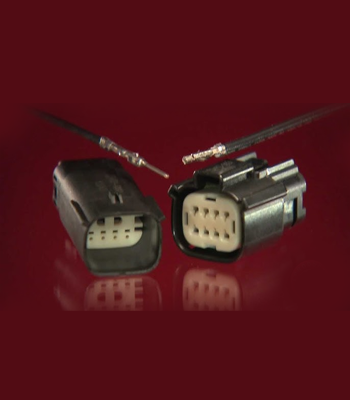

Rectangular Connectors: Offer a compact, multi-pin configuration ideal for densely packed control systems and electronic modules.
Hermetically Sealed Connectors: Prevent moisture, gas, and dust ingress; used in sealed or pressurized systems such as avionics and submarines.
