High-Quality Automotive Terminals

We provide manufacturing services in Wiring Harness like.. Engine Wiring Harness, Dashboard Wiring Harness, Tailgate Wiring Harness, Bumper Wiring Harness, Alternator Harness, Headlamp Assembly, Pigtail Assembly, Battery Cables and Plastic Molds for Small Components, Wiring Harness comp, EPDM, Rubber Mold, Relay/ Fuse box covers, Proto parts, 3D printing etc.

In Automotive Wiring Systems, An Automotive Terminal is a metal connection that joins electrical cables to parts such as control units, switches, or sensors. These terminals are usually composed of steel, brass, or copper and guarantee safe, conductive connections. They are necessary for dependable and effective electrical operation in vehicles.

Functions of Automotive Terminal

Automotive terminals are crucial components of cars' electrical systems. When wires are joined to other wires or components via connectors, they serve as the points of contact. electrical connection, Verify that all electrical components and wires are firmly attached. Verify that the power and signal are transmitted properly. Secure Mechanical Attachment Hold wires inside connections securely. Refrain from disconnecting due to vibrations or movement. The purpose of carrying current is to efficiently move electrical current without producing significant heating or voltage drops.

Protection and Insulation frequently combined with housings for connectors that guard against short circuits. shields the connection from corrosion, water, and dust. Make Plug-and-Play Connections EasyMake it simple to assemble and disassemble wiring harnesses for upgrades, repairs, and manufacture. Integrity of Signals Preserve signal quality, particularly in data communication lines such as LIN, CAN, etc. Standardization of Interfaces designed to be compatible with industry-standard connections by adhering to standard sizes and interfaces.

Access to Diagnostics Certain terminals enable the connection to diagnostic instruments, which permits testing or diagnostics. Efficiency of Maintenance Make car maintenance easier by enabling fast circuit replacement or examination. Resistance to Temperature constructed from materials resistant to extremes in cabin and under-hood temperatures.

Advantages of Automotive Terminal

Reliable Electrical Connection: Ensures consistent current and signal flow between components.
Ease of Assembly: Terminals can be easily inserted into connectors, speeding up manufacturing and repair processes.
Modularity: Allows modular wiring systems where parts of the harness can be replaced independently.
Vibration Resistance: Designed to resist loosening due to engine or road vibrations.
Corrosion Resistance: Often plated (e.g., with tin or gold) to prevent oxidation and ensure long-term performance.
Space Efficiency: High-density connections in constrained space are made possible by compact designs.
Safety : Proper insulation and locking mechanisms reduce the risk of short circuits or accidental disconnections.
Serviceability : Simplifies troubleshooting, repair, and component replacement.
Standardization : Many terminals follow international standards (e.g., ISO, SAE), allowing compatibility and interchangeability.
Durability : Engineered to withstand harsh automotive environments like heat, cold, moisture, and chemicals.

Components of Automotive Terminal

Component	Description / Function
Terminal Body	The main metallic part that conducts electricity; usually made of copper or brass.
Contact Area	The surface that mates with a corresponding terminal to establish an electrical connection.
Crimping Area	Part of the terminal that is crimped to attach the wire securely.
Wire Barrel	Section where the conductor of the wire is inserted and crimped.
Insulation Barrel	Section where the wire insulation is crimped to provide strain relief.
Locking Tab	Helps lock the terminal inside the connector housing to prevent it from pulling out.
Retention Tab	Ensures secure engagement with the connector housing; acts as a secondary lock.
Plating Layer	Coating (e.g., tin, nickel, or gold) to improve corrosion resistance and conductivity.
Seal (optional)	Rubber or plastic seal to protect against moisture, dust, and contaminants.
Identification Mark	Markings or color codes for easy identification during assembly or maintenance.

Types of Automotive Terminal

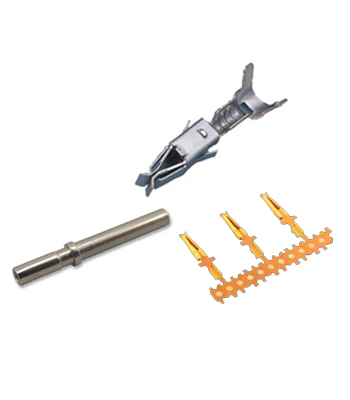

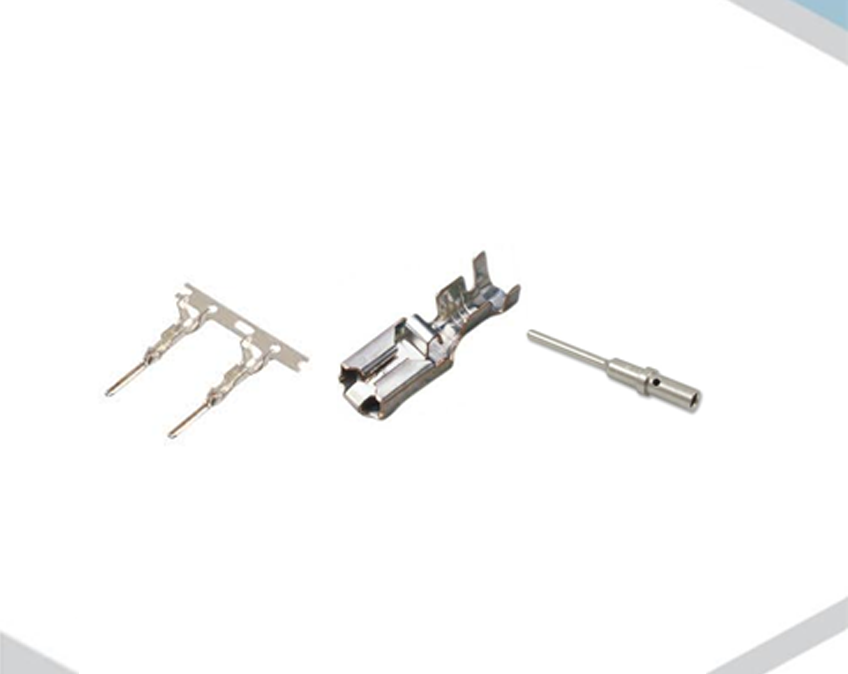

Male Terminals (Blade or Pin Type):Flat or round pins that insert into female terminals. Used for power and signal connections.

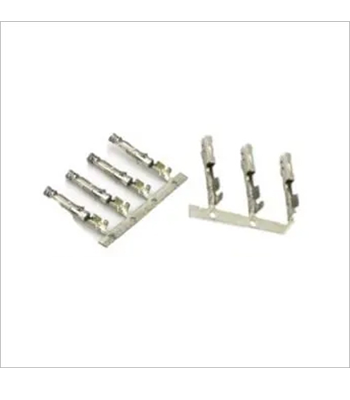

Female Terminals (Receptacle Type): Designed to receive male terminals. Provide secure and insulated contact.

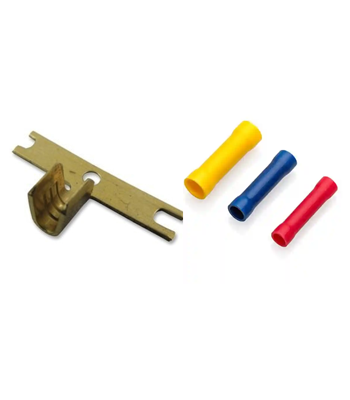

Bullet Terminals: Rounded male and female terminals that snap together. Easy to connect and disconnect; often used in lighting circuits.

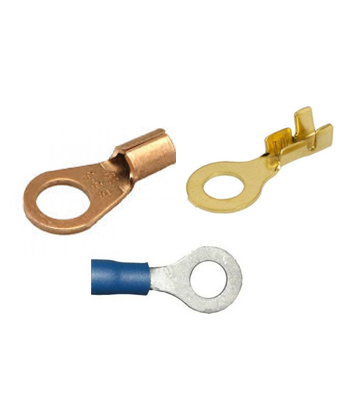

Ring Terminals: Circular metal loop that fits over a stud or bolt. Commonly used for grounding or battery connections.
Spade Terminals (Fork Type): U-shaped end allows connection under a screw or stud without full removal. Quick to install and remove.
Flag Terminals: Wire exits the terminal at a right angle. Ideal for tight spaces or side-entry applications.
Quick Disconnect Terminals: Allow fast connection/disconnection without tools. Often used in fuse boxes, switches, and sensors.
Fuse Terminals: Integrated into fuse blocks to provide both terminal and circuit protection. Used in fuse boxes and power distribution units.
